Product Application:
high temperature treatment and graphitization of carbon structural parts (products), C/C composite products, graphene, carbon fiber products, sintering graphitization of carbon fiber filament and other materials that can be sintered and smelted in carbon environment.
Product Advantage:
Vacuum graphitization furnace is a high-performance intelligent heating furnace introduced by our engineers and technicians who digest and absorb foreign temperature measurement, temperature control technology, intelligence, new material technology and furnace design technology. Suitable for high temperature treatment of materials (carbonization, graphitization, high temperature degreasing, impurity removal, etc.) under vacuum or gas protection.
Product Features:
Ultra-high temperature furnace body up to 2600℃, can fully meet the sintering and graphitization of various materials.
Using digital display intelligent temperature control system, automatic, high precision temperature measurement and temperature control process, the system can be heated according to the given temperature curve, and can store 20 pieces of a total of 400 different process heating curve.
Adopt internal circulation pure water cooling system, digital flow monitoring system.
Intelligent PLC security monitoring, remote control can be realized, with no paper to record the parameters, automatic storage, water, electricity, gas automatic control and protection system, with internal network port connection.
Furnace body is equipped with mechanical explosion-proof valve, with automatic pressure relief function, to ensure safety.
Main Technical Parameter:
| Model | JT-SML-24-Z | JT-SML-54-Z | JT-SML-128-Z | JT-SML-375-Z | JT-SML-720-Z | JT-SML-1225-Z |
| Highest Operating Temperature | Normal Temperature -2600℃ |
| High Temperature Zone Volume | 200*200*600 | 300*300*600 | 400*400*800 | 500*500*1500 | 600*600*2000 | 700*700*2500 |
| Loading Capacity | 24L | 54L | 128L | 375L | 720L | 1225L |
| Working Atmosphere in the Furnace | Vacuum, hydrogen, nitrogen, inert gases, etc |
| Temperature Uniformity | ≤±10℃ | ≤±15℃ |
| Temperature Measurement | Far infrared optical temperature measurement (double connectors automatic switch) |
| Temperature Measurement Range | 900-3500℃ or 1000-3200℃ |
| Temperature Measurement Accuracy | 0.2-0.75% |
| Temperature Control | Program control and manual control |
| Temperature Control Accuracy | ≤±1℃ |
| Ultimate Heating Rate | 60℃/min | 25℃/min |
Product Tags:
|
|

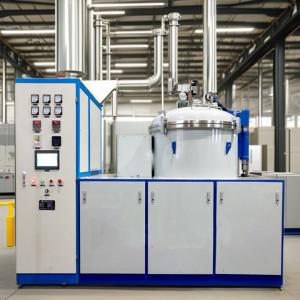

Stainless Steel Vacuum Graphitization Furnace PID Temperature Control Customizable Images
|
