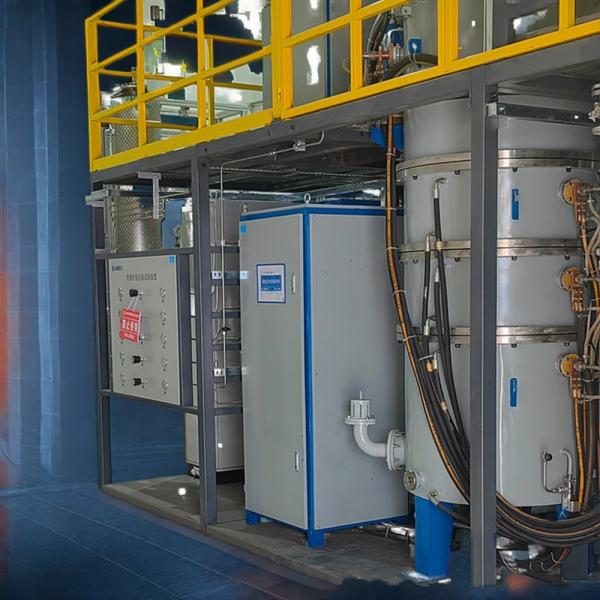

OEM Stainless Steel Vapor Deposition Furnace Industrial CVD Furnace With PLC Control

Name: OEM Stainless Steel Vapor Deposition Furnace Industrial CVD Furnace With PLC Control
Brand: Jingtan
Price: 10 USD

Price : USD10,000-80,000/SET

Brand Name : Jingtan

Certification : CE

MOQ : 1 set

Delivery Time : 60 days

Packaging Details : wooden case

Payment Terms : L/C/T/T

Supply Ability : 5pcs/month

place of origin : Hunan, China

type : Resistance Furnace

usage : deposition furnace

video outgoing-inspection : Provided

machinery test report : Provided

core components : PLC, Engine, Pump

brand name : Jingtan

voltage : 380

weight (t) : 6

warranty : 1 Year

key selling points : Flexible Manufacturing

Limit Temperature : 2200℃/2800℃

Heating Method : graphite resistance/induction heating

Ultimate Vacuum Degree : ≤30Pa

Temperature Uniformity : ±3℃

Presuure Rising Rate : 1Pa/h

Furnace Structure : vertical

Furnace Body Materials : SS 304

Chamber Size : dia.100*500mm

Contact Now

Product Usage

Used for CVD/CVI treatment of the surface or matrix of the material with hydrocarbon gas (such as C3H8, CH4, etc.) as the carbon source, and for the surface coating of the material, matrix modification, composite material preparation, etc.

Vapor Deposition Furnace

(1) The electric heating way:uniform heating, simple operation, easy control and maintenance.
(2) The furnace is made of special materials with strong high temperature resistance, which can withstand the weight of high temperature heating elements and heavy components, and has excellent sealing performance, which can effectively prevent the sediment growing on the substrate from being contaminated.
(3) Intelligent pressure control, small pressure fluctuation;
(4) The fully enclosed structure has good thermal stability, good sealing effect and strong anti-pollution ability;
(5) Multi-channel process gas path, uniform flow, no deposition dead Angle, good deposition effect;
(6) Multi-stage high-efficiency exhaust treatment system, environmentally friendly, efficient collection of tar and by-products, easy to clean;
(7)The cooling method is adopted, the shell is cooled by water, the external circulation fast cooling system can be selected, the cooling time is short, and the production efficiency is high.

Model

JT-CJL-04

JT-CJL-14

JT-CJL-31

JT-CJL-74

JT-CJL-127

JT-CJL-211

JT-CJL-326

JT-CJL-588

Working Zone Size

φ×H(mm)

100×500

150×800

200×1000

250×1500

300×1800

350×2200

400×2600

500×3000

Limit Temperature(℃)

2200/2800

Temperature uniformity(℃)

±3/±5

±5/±7.5

±7.5/±10

±10/±15

±15/±20

Limit Vacuum Degree(Pa)

≤30

≤50

≤100

Pressure rise rate(Pa/h)

Heating method

graphite resistance/induction heating

The above parameters can be adjusted according to the process requirements, and shall not be used as the basis for acceptance.The specific technical plan and agreement shall prevail.

OEM Stainless Steel Vapor Deposition Furnace Industrial CVD Furnace With PLC Control

Are you a factory or trading company?

Q: Are you a factory or trading company?

A:Yes,we are China leading high-temperature vacuum furnace manufacturer 14+years,granted with many patent certifications in the domestic market.

Do you have customization or OEM service?

Q: Do you have customization or OEM service?

A:Yes,we have powerful R&D team and high-tech equipment.So we can not only supply the regular model,but also the customizable furnace as the repuirment of our clients.

What's your advantages?

Q:What's your advantages?

A:Quick response to your enquiry
High quality control
Stable supply chain in the domestic maket
Timely delivery
Excellent after-sales service,we can dispatch our engineer to the customer city for installation and debugging.
