Vacuum Sintering Furnace For Powder Metallurgy , High Temperature Silicon Carbide Furnace

Name: Vacuum Sintering Furnace For Powder Metallurgy High Temperature Silicon Carbide Furnace
Brand: Jingtan
Price: 10 USD

Price : USD10,000-80,000/SET

Brand Name : Jingtan

Certification : CE

MOQ : 1 set

Delivery Time : 60 days

Packaging Details : wooden case

Payment Terms : L/C/T/T

Supply Ability : 10pcs/month

place of origin : Hunan, China

type : Induction Furnace

usage : Metallurgical powder sintering

video outgoing-inspection : Provided

machinery test report : Provided

core components : PLC, Pump

brand name : Jingtan

voltage : 380

weight (t) : 2 T

power (kw) : 150

warranty : 1 Year

key selling points : Accurate temperature control

Limit temperature : 2450℃

Leakage rate : no more than 10Pa/ hour for 12 hours after pump stop for 15 minutes

Temperature control accuracy : ±11

Heating material : graphite tube and graphite rod

Condition : New

Warranty of core components : 1 Year

Showroom Location : Kenya, Algeria

Marketing Type : Hot Product

Applicable Industries : Energy & Mining, metallurgical powder industry

Contact Now

Specification

Widely used in metallurgical powder, ceramic sintering, silicon carbide sintering, boron nitride sintering

Silicon carbide sintering furnace

It is a kind of intermittent resistance heating furnace and the main application scope is non-pressure silicon carbide sintering, hard alloy, powder metallurgy industry production of various particle sizes of tungsten carbide powder, chromium carbide powder, titanium carbide powder, vanadium carbide powder and other metal powder and composite metal powder, cold pressing molding, sintering treatment.

Limit temperature	2450℃
Operating temperature	2300℃
Ultimate vacuum	1Pa(in a cold, empty and clean furnace)
Leakage rate	no more than 10Pa/ hour for 12 hours after pump stop for 15 minutes
Temperature control accuracy	±11
Voltage	380V,50Hz,3phase
Heating material	graphite tube and graphite rod
Gas supply	graphite tube and graphite rod
Common constant temperature area	300300500mm,400400800mm, 5005001300mm,6006001400mm

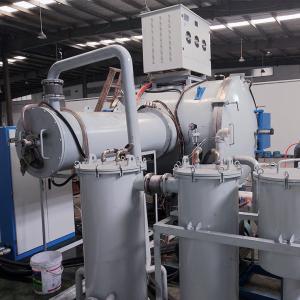

Vacuum Sintering Furnace For Powder Metallurgy , High Temperature Silicon Carbide Furnace

Characteristic 1:

Intelligent digital display instrument programming PID intelligent digital display temperature controller, new digital display,intelligent control technology, can reduce visual reading and human operation error, greatly improve work efficiency, double row
digital display, key setting,overtemperature alarm.

Characteristic 2:

Microcomputer automatic control, programmable multi-section rising, protecting, cooling curve, automatic heating, heat preservation, cooling and overtemperature protection, the program automatically stops at the end of operation, no need to watch.

Furnace adopts high temperature durable heat insulation material,which ensure that the temperature outside the furnace body under long-term work does not exceed the allowable value of the national standard.

Characteristic 3:

Internal circulating water system, to ensure the speed of cooling. The furnace body temperature is close to room temperature.

L Fast heating, environmental protection and energy saving, high precision, stable performance, good heat preservation effect
